Pole Vault Landing Area | International

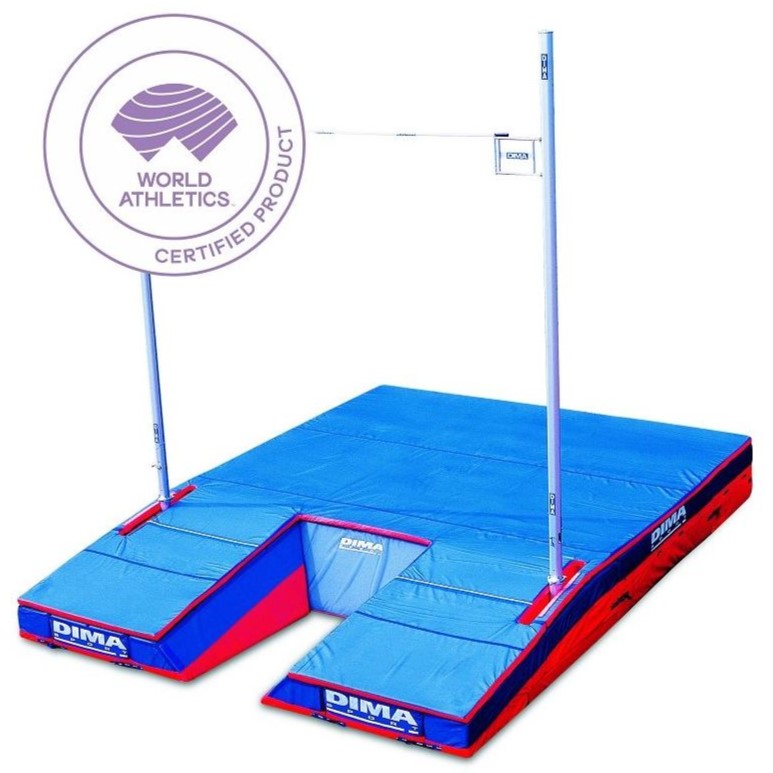

The DIMA International Pole Vault Landing System is a world class competition landing area found in many top International Stadiums.
Manufactured to exacting standards and certified by World Athletics, this 8m x 6m Pole Vault Bed prioritises both comfort and safety for stadia looking for the very best in vaulting safety and comfort.
DIMA PV Landing Bed Options
DIMA PV landing beds come in three options:

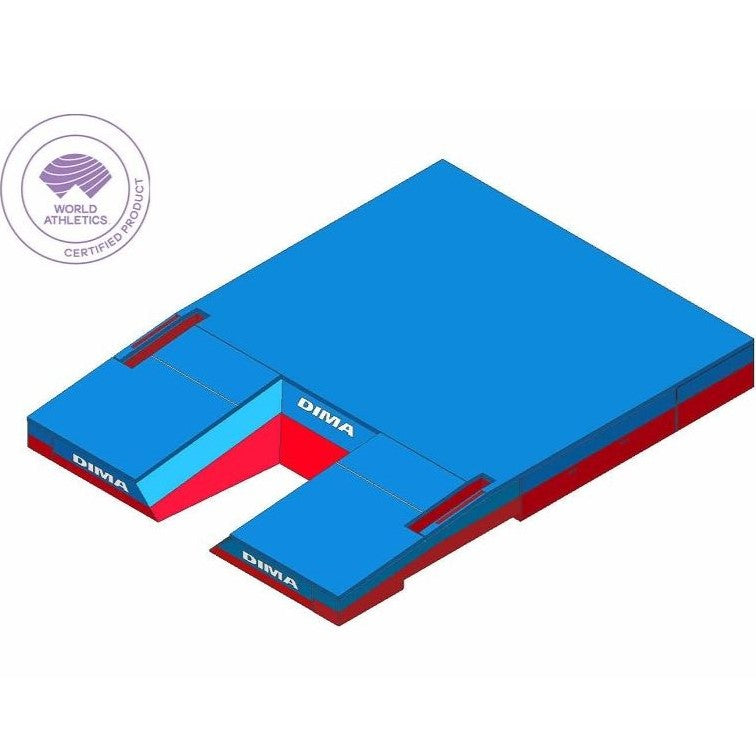

1. Modular Landing System:
Composition: Twelve Air Foam modular units are individually covered in PVC with straps to connect them together to form the landing area. The main bed modules are interchangeable and easily transported. These are topped with a 7cm or 10cm thick anti-spike top pad for a uniform and comfortable landing.
Available in heights of 80 or 87 cm.
- Good level of comfort
- Reversible and interchangeable blocks increases the product life-span as blocks can be rotated from the main landing area to edges for better wear.
- Easy to assemble, move and store. Ideal for moving the landing area depending on wind direction.
2. Comfort Plus Single Cover Landing System:
Composition: Air Foam units encased in a single cover, providing a stable landing area. These are topped with a 7cm or 10cm thick anti-spike top pad for uniform and comfortable landings.
- Very good balance of quality and price
3. Single Cover Landing System:
Composition: Air Foam units encased in a single cover, providing a stable landing area. The top surface and edges of the cover are made with integrated anti-spike fabric.
- Excellent price
All three options also require a galvanised platform and weatherproof cover, which can be purchased separately.
DIMA landing area features
Airform Block Base

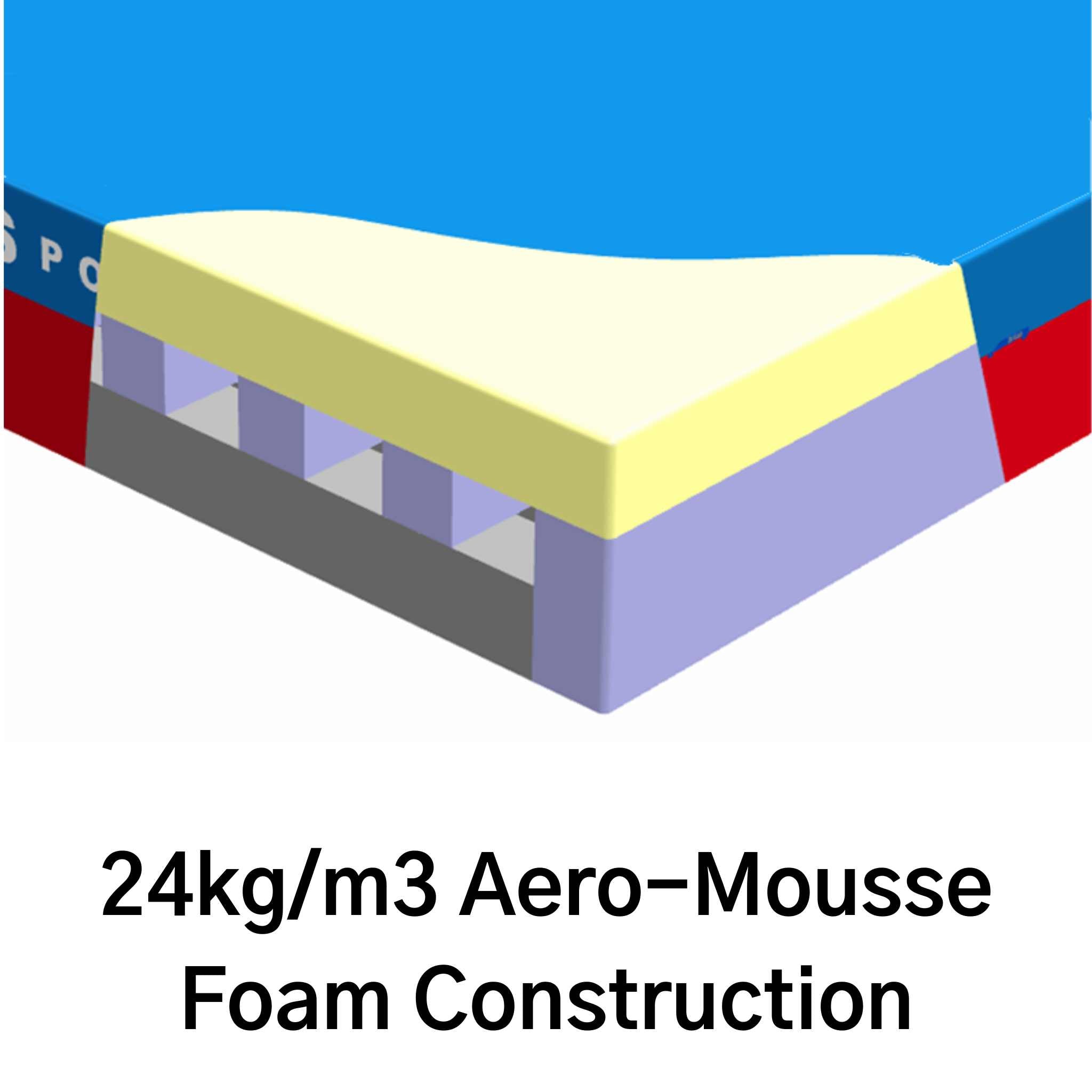

DIMA's Airfoam blocs are manufactured by cross-assembling plates of high grade foam of varying densities to form an optimal landing bed for well-managed landings. This increases both comfort and durability regardless of body size or drop height.

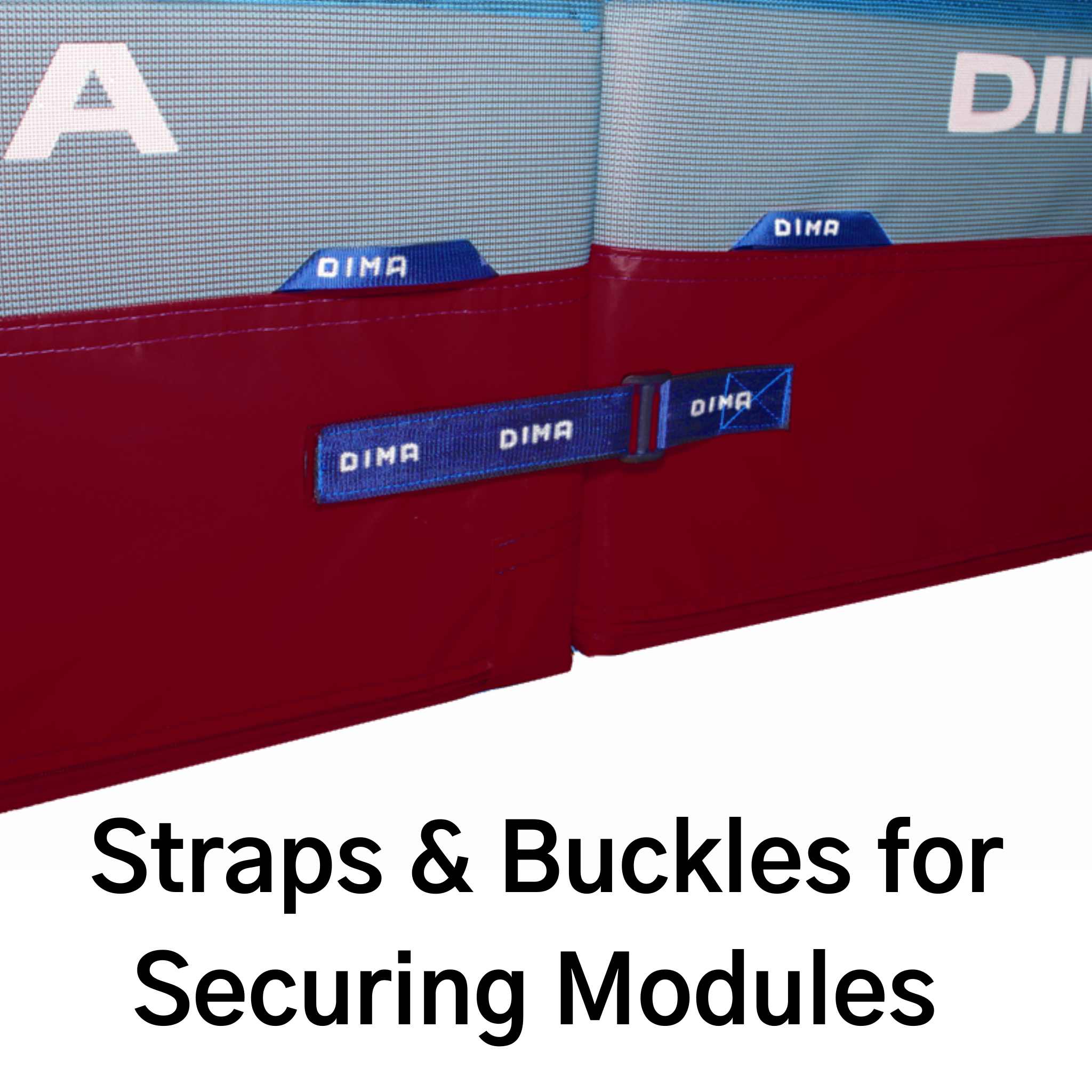

The Modular System features separate blocks each encased in PVC, with straps to hold them securely together. Rotating the position of the blocks increases the life-span of the bed, and the blocks can be replaced individually if needed, breathing new life into the bed without the cost of a full replacement.
The Single Cover bed options have the foam blocks all encased in a single cover, providing extra stability compared to modular block systems.
Durable PVC cover with Spike Mat
The sides and bottom of the pole vault bed are covered in 650g/m2 PVC fabric. The top surface and overlap is in an anti-spike fabric for an improved air escape and a more comfortable landing.
For the single cover option, the spike cover / wear-sheet is integrated into the bed.
For the Modular System & Comfort Plus Single Cover, an additional 7mm spike cover / wear sheet is fitted onto the top with hidden snap hooks located underneath the mat to avoid injury.
The single top cover sheet is designed with integrated protection for the upright bases. This offers improved safety and is required for WA certification.
Features a 45° open angle cut out to ensure safety whilst not interfering with the plant & flex of the pole.
Extra large 200cm front extensions alongside the trough for increased safety.

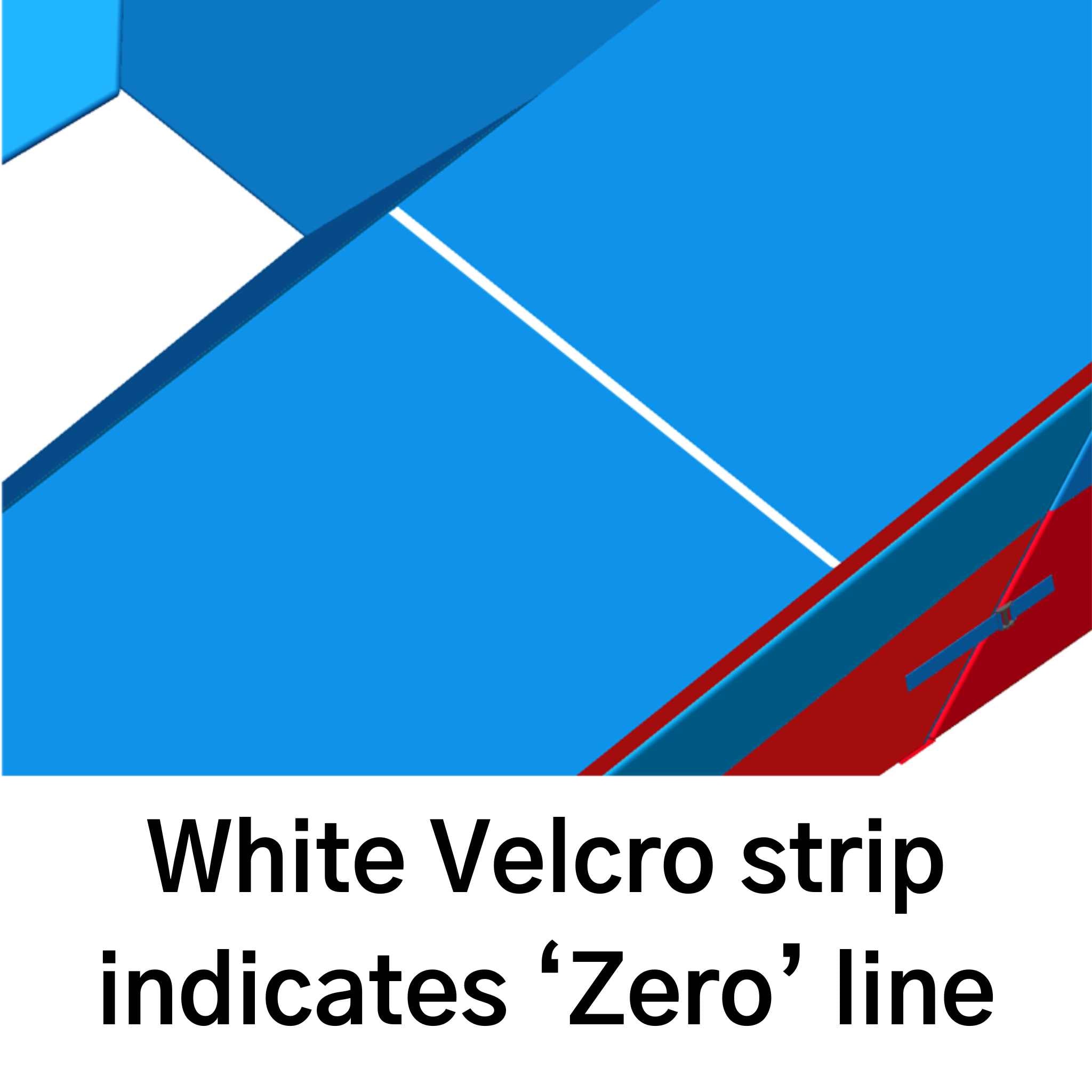

Visualisation of the 'Zero' line with a velcro white line on the landing area side extensions.
Easier fine tuning of the uprights thanks to a velcro metric adjustment line on the integrated protection panels.
47cm height at the front of the extension arms.
DIMA pole vault bed specifications
World Athletics N° E-99-0076 certified
World Athletics level 2 specifications.
NF EN 12503-2 type 11 certified.
- Choice of:
- 8.0 x 6.0 x 0.80m (World Athletics Level 2 rules): Modular 80, Comfort Plus or Single Cover
- 8.0 x 6.0 x 0.87m (World Athletics Level 2 rules): Modular 87
- Specification options:
- Modular (80 or 87 cm height)
- Comfort Plus Single Cover
- Single Cover
- base modules
- spike proof top pad (either separate or integrated, depending on the model)
- Does not include
This is a GUIDE PRICE only. Please contact us for a final price before ordering. Alternatively, if you wish to order direct on this website, we will contact you to confirm the price before fulfilling your order.
There is an 8-10 week lead time on DIMA landing areas.
